The rising costs of the Renewables Obligation Certificate Scheme


The cost of Renewables Obligation Certificate scheme ROCs to covert the UK to renewable electricity has more than doubled in less than four years. Whilst the majority of this increase is down to volume increases and inflation, a significant part is down to switching to higher levels of subsidy, particularly for offshore wind farms. This means that the unit cost of electricity from renewables is rising. One wonders if the DECC has factored this into its projected costs of energy to households.

Main Analysis

In my previous posting “Labour’s Hypocrisy on Rising Energy Bills”, I identified that the rise in energy bills over the last few years was mostly due to rising costs external to the energy companies. I only briefly alluded to the causes. This posting looks at the growth in “Renewables Obligation Certificates” (ROCs), the major vehicle to encourage the energy industry to switch to renewables from fossil fuels. Working out the proportion of the “other cost” increases is difficult to work out, but it could be up to a half.

On the 19th December, the Department for Environment, Energy and Climate Change (DECC), issued a great rash of postings to its website. Amongst these of particular interest was “Energy trends section 6: renewables“. This contains a spreadsheet of interest – ET 6.3 “Renewables obligation: certificates and generation”. This gives monthly data covering the period January 2010 to August 2013.

Not all renewables are equal. Different types of renewables attract different ROC rates per MWh (megawatt-hour) of electricity generated. These vary from 0.25 to 5.00. In practice more than 99% of renewable power generated falls into four bands – 0.50, 1.00, 1.50 and 2.00.

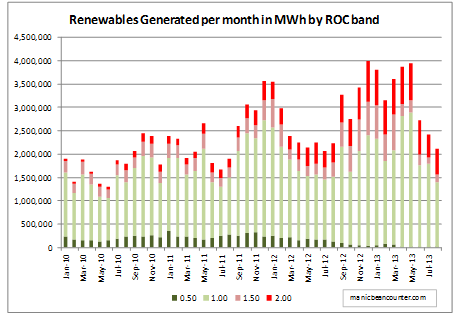

Charting the electricity generated in megawatt hours for the period gives the following graph:-

In less than 4 years there has been a spectacular growth in total electricity generated from renewables, from around 1.5m MWh per month in early 2010, to over 3.0m in early 2013. But there has been even greater growth in the generation of renewables with 2.00 ROCs, and the disappearance of the 0.50 ROCs. This can be better seen by the proportions of generation in each of the ROC bands.

In early 2010, less than 5% of renewables generated qualified for 2 ROCs, whereas by 2013 over 20% did. To show the impact more clearly I have devised three indexes. These include all ROC bands for declarations on a monthly basis. (A very tiny number of schemes have annual declarations.)

  1. Renewable electricity generated qualifying for ROCs.
  2. Renewable Obligation Certificates issued.
  3. The buy-out value of the ROCs. This value is declared by the regulator OFGEM, and inflated each year by the Retail Prices Index. The 2013/14 declaration is here, with all the previous rates.

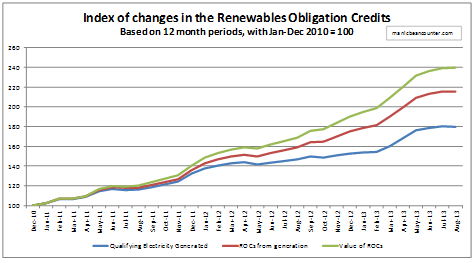

The index is for 12 month periods, with the period January to December 2010 set to 100.

From the period Jan-Dec 2010 to the period Sept 2012-Aug 2013, volume of renewables electricity generated increased by 80%; volume of ROCs by 116%; and value of ROCs by 140%.

There is a rapid growth in renewables, but the real cost per unit generated is increasing more rapidly. In buy-out values terms, the ROCs issued were worth £862m for Jan-Dec 2010 and £2,069m for Sept 2012-Aug 2013. But what type of renewable is responsible for this real cost per unit increase?

The Growth in Wind Turbine generation and ROCs

A major component of renewables has always been wind turbines, but the proportion is increasing. They are split between onshore and offshore. There are three graphs showing this increase.

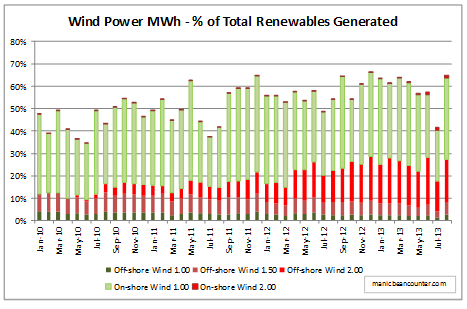

  1. The proportion of renewables generated from Wind Turbines

    This shows that not only has the proportion of generation from wind turbines increased from around 40% to nearly 60%. More than 100% of the increased proportion is due to offshore wind turbines with 2.00 ROCs per MWh generated.

  2. Wind generated ROCs as a proportion of ROCs issued

    The share of total ROCS for wind turbines now accounts for over 60% of the total. Around 30% is from offshore wind turbines with 2.00 ROCs per MWh generated.

  3. Index of Changes in Renewables Obligation Credits for wind turbines.

From the period Jan-Dec 2010 to the period Sept 2012-Aug 2013, volume of renewables electricity generated increased by 134%; volume of ROCs by 177%; and value of ROCs by 209%. In buy-out values terms, the ROCs issued for wind turbines were worth £426m (49% of the total) for Jan-Dec 2010 and £1,315m (64% of the total) for Sept 2012-Aug 2013.

The true cost of offshore wind power

This analysis has solely concentrated on ET 6.3. The “Renewable electricity capacity and generation” (ET 6.1) file has some useful data on load factors. For wind turbines I have extracted the annual data.

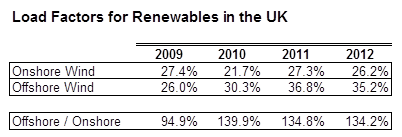

Offshore wind turbines have around 35% higher load factors than onshore.

The vast majority of income for wind turbines is in two parts. There is the wholesale price at around £60 per MWh and the ROC income, which is £42 for onshore and £84 for offshore.

Per annum, with 35% more load, the offshore wind farm can expect about 90% more income per MWh of capacity than the onshore to cover capital and maintenance costs. It is even worse when compared with the gas-fired alternative. The only income for the generator is the £60 per MWh from selling wholesale, but they have the additional costs of at least £20 per MWh for fuel.


An area not covered is the growth in the use of Biomass / other fuels at coal-fired power stations. This will be in a posting next year.

Questions on the subsidising of offshore wind turbines

  1. Given that prior to 2010 offshore wind farms were being commissioned with ROCs of 1.00 and 1.50, how much of this increased rate of 2.0 accommodates greater costs (more distant from the shore, and in deeper water) and how much gives greater profits?
  2. Given that a gas-fired power station can cover its operating and capital costs with less than £40 per MWh, should we be considering alternative, and less reliable, forms of electricity generation that seem to need up to four times the income to operate?
  3. Was any independent studies done of the costs of wind-generated power in setting the ROC rates, or was it just on the advice of the renewables industry and a DECC desperate to meet its carbon budget?
  4. Have the DECC factored in the need to give ever higher levels of subsidies to meet renewables targets?

Kevin Marshall

Ed Miliband fails to link to New Year Message

At 2.05pm on 30/12/13 I got a New Year message from Ed Milliband

Manic Beancounter,

Later today, my New Year’s message for 2014 will be released. I want you to see it first.

Across the country this year, people often asked me if I understand the severity of the cost-of-living crisis, and what a Labour government could do differently to tackle it. It’s a good and fair question.

Here’s the answer I’ve been giving to the members, supporters and voters who ask — and which I also want to share with you:

Watch my New Year’s message

We’ve achieved an amazing amount together over the last twelve months: we’ve built our campaign across the country and — because of the generosity of supporters like you — we now have an organiser lined up for each one of our key seats.

If we work hard, listen to people, and make our case right, this will be the last full year of this Tory-led government.

With my very best wishes for 2014; I know we’re going to achieve more great things together.




Problem is, when I click on this message I get

Oops! Google Chrome could not find

Did you mean:

We all make mistakes, but Labour seem to be making a habit of it. On the flagship “Freeze that Bill” policy

  1. No link to the policy content on the Labour Party website.

Go to and you will still find

This still takes me to this page.

There is still no way you can link to Ed’s Energy Plan, as announced on 29th November, from the Labour Party Website. For those interested it can be found here.

2. On the video there is still a faulty link.

At 1.22 to 1.26 Labour put up a website

    When it should be

3. On Ed’s message is a bogus link

At there is a link to This actually links in to

Labour are meant to be the party of slick presentation and spin. Clearly they are missing Peter Mandelson and Alistair Campbell.

Kevin Marshall

Labour’s Hypocrisy on Rising Energy Bills

If you go to the Labour Party’s website there is an announcement.

Clicking down will take you to energy price calculator. I found out with Ed’s policy I could save £112 per year.

Two weeks after the announcement, still no links to the actual plan, but there is a video to watch.

Just one minute and twenty-six seconds for a distinguished actor to say the following:-

How do you feel when you see your energy bill sitting at the front door and you know that it is going to be even higher than the last one?

And how do you feel when you read in the newspaper that your energy providers’ profits are up yet again?

Millions of ordinary families are struggling to keep up with bills. Bills that are rising faster than wages.

Since David Cameron became Prime Minister, he’s allowed gas and electricity to rise by an average of £300 a year and sat by as energy companies make record profits. Under this Government a privileged few come before hard-families. Ed Miliband and Labour are going to change that. Ed’s energy plan will mean a tough new regulator with the power to challenge the energy companies and keep prices down. Under Ed’s energy plan gas and electricity bills will be frozen. That’s right frozen. Under the Tories you have overpaid. Labour will fight the cost of living crisis and build an economy that works for working people.

The inference is that your bills are rising solely due to the ever-increasing profits of the energy companies. Further the nasty Tories had it in their power stop it. Along will come Labour and stop all that.

I have looked up the figures. Since the 2009, the energy regulator OFGEM has required the six big energy companies to produce financial data by five segments. That is for electricity generation, along with supply data for electricity and gas, each split between domestic and non-domestic supply. I have analysed all four years of data for the six companies, using links provided by OFGEM. There is, of course, no financial data available for 2013 as the year has yet to finish.

If Labour are correct in their inference of price rises being due to increasing profits then profits will be increasing as a percentage of sales. With the typical household’s bill rising by over 20% between May 2010 and the end of 2012, profits as a percentage of revenue would be rising sharply. The following shows the percentage components of revenue.

The narrow band in purple for profit increased from 1.8% of sales to 3.8%. It is not increasing profits that have caused the price rises. The reason for doubling is because, in total, the six major companies lost money on gas supply in 2009. Nor is there a sharp difference between domestic and non-domestic supply margins. You could claim that the energy companies are making more money on generation instead. They are not, as the full margins, by segment, by year, show below.

The total sales breakdown enhances the picture.

Although total are broadly the same in 2009 and 2012, revenue from domestic customers was 13%, whilst that from non-domestic customers was 17% lower. The reason Labour have a higher figure is they rely on OFGEM’s notional average user, who uses the same amount of energy year-in-year out. Real hard-working families have responded to rising prices by reducing consumption.

What is most important is why unit costs have risen. Labour are correct when they say it is not due to the wholesale price of energy. As already demonstrated, they are incorrect to say it is due to rising profits. The real reason is “other costs”. These rose from 32% to 40% of revenue in just four years. That is from £14.1bn to £17.7bn in just four years or a 25% increase. On declining volumes this is more significant for consumers.

These figures are corroborated by a breakdown by my energy supplier, Scottish Power.

With VAT at 5%, the Scottish power says that its charges to the domestic customer in 2013 are made up of 53% for fuel and 43% for other charges. This compares to the industry average in 2012 of 55.7% for fuel and 40.6% for “other costs” plus “amortization”. The higher proportion of other charges to domestic customers is to be expected, as small domestic customers have lower costs. The relevant domestic figures from the big six are 51.8% for fuel and 44.0% for other charges. Given the obviously rounded Scottish Power figures, they are remarkably close to the industry average.

The supply market is fiercely competitive, hence the real reason for the ability of customers to save money by switching suppliers. Therefore it is doubtful that internal costs will have risen. What has risen is the delivery of the energy to the home (National Grid, local delivery, and cost of meters), along with green levies. So it is likely over 75% of the price increases to the customer are due to factors outside of the energy supplier’s control.

Where does responsibility lie for the above-inflation price increases?

The dash for “clean” energy to save the planet is enshrined in the Climate Change Act 2008. It was pushed through the House of Commons when Ed Miliband was Environment Secretary. This accelerated the growth in green levies and the requirement for a more extensive grid network to carry the wind-generated electricity from remote turbines. Delve further in the profits on electricity generation and you will find that fossil fuel generation has margins of 10%. A price freeze will eliminate the supply profits in six months, and the generation profits in two years. The is a sure way to get a near monopoly in gas supply, and cause the rapid shut-down of three-quarters of generating capacity. It is an act of gross hypocrisy by Ed Miliband to threaten to destroy a competitive industry to remedy a problem that he is responsible for.


NB First time comments are moderated. The comments can be used as a point of contact.

Kevin Marshall

Tyndall Centre’s New Totalitarianism

Updated with more examples 14/12/13 11am

The Tyndall Centre for Climate Change Research (HQ at the University of East Anglia, with branch office just down road from me at Manchester University) held The Radical Emission Reduction Conference: 10-11 December 2013 at the offices of the Royal Society. Joanne Nova reporting on the conference quoted the following:-

Today, in 2013, we face an unavoidably radical future. We either continue with rising emissions and reap the radical repercussions of severe climate change, or we acknowledge that we have a choice and pursue radical emission reductions: No longer is there a non- radical option.

My first reaction was

These people have not discovered logic or the real world outside of their groups. For instance

1. Where are the robust, unambiguous, forecasts of “severe climate change” impacts? Lacking this, the “do-nothing” scenario could be an alternative.

2. Radical emission reduction policies may not work. Useless policies could end up causing mass impoverishment, leaving future generations much less able to cope with the coming climate apocalypse.

3. Radical emission reduction policies may be both necessary and work in theory, but will never be enacted because “radical” activists have not learnt the art of persuasion and appreciating that other points of view are possible.

Following an initial reading of the conference abstracts, this initial reaction was somewhat understated. The 1.01MB file is at radicalplanabstracts.pdf. Some notes.

The Philosopher’s case for Totalitarianism

On pages 15 to 17 is ‘Responsibility for radical change in emission of greenhouse gases’

Page 16

Generally it is acceptable to frame scenarios of climate change in terms of cost-efficiency, percentages of emission reduction or the target atmospheric CO2 concentration. Yet we develop the argument that predefining the outcome of any change limits the possible processes leading to this change. In fact, when we already know the necessary outcome, the change that is necessary cannot be considered radical at all.

Page 17

For the radical change in greenhouse gas emissions the responsibility towards the radicalness of change means that those involved in the climate change negotiations and policy-making need to let go of their preconceived notions of climate, change, and general structure of cause and effect, science and human life.

And in conclusion

We argue that one cannot desire radical change without acknowledging that we (individuals and institutions) may be swept off our feet, that we may lose influence and control. We need to accept that modifications are not going to bring about radical emission reductions. What we need is radical change, including radical change in our own backyard, our understanding of leadership and in our own epistemic notions of what change means.

All that matters is saving the planet. It is not about saving the planet for future generations, as we humans do not matter. It is not about the climate models being accurate – as they are supposed to about modelling cause (increasing greenhouse gas levels) with the effect (catastrophic anthropogenic global warming). And it is not science.

The Economist’s case for Totalitarianism

On pages 7 to 9 is ‘Demand-side regulation in the policy mix to achieve radical CO2 reductions: modelling global decarbonisation with E3MG

Page 7

Radical reductions in CO2 emissions from reductions in consumption of fossil fuels across the economy could be modelled as coming from changes in life-styles, regulations or prices or a mix of all three. The main demand-side sources arise from the use of fossil fuels in buildings, transport and industry, and indirectly, via the use of electricity generated from fossil fuels. We assume that the power sector becomes decarbonised via a mix of emission trading schemes and regulations. We then consider the implications of a rapid reduction in demand-side fossil-fuel use coming from higher energy prices and regulation of equipment standards and energy efficiency.

To achieve the plan, all the advanced countries (and some not-so-advanced like Belarus) will introduce emissions trading schemes ETS with low tariffs in 2015, sharply escalating after 2020. Emerging economies (e.g. China, Brazil & Mexico) will introduce schemes in 2020 at lower rates. By 2030, in conjunction with tougher economic regulations, coal-fired power stations will be phased out.

With respect to the regulations

These effects are then strengthened from 2020 onwards, with the energy saving, the associated investment and increase in prices all rising by some 17%pa. By 2030 the strength of the regulations is about 5 times that assumed by the IEA. The scale of this increase gives an indication of just how strong regulations have to become.

Italics mine. The plan will only work if it far, far tougher than anything yet on the table. At least the models predict that there will be a small net benefit.

The Increase in investment, including indirect effects, is about 4% above the reference scenario by 2030. Combined with the effects of revenue recycling and the lower growth in world oil prices, it generates more output and employment, raising both growth rates by some 0.2 percentage points each year over the decade.

So in China, which has had near 10% annual growth for over two decades based on cheap coal-based energy, can switch to much more expensive and less reliable “clean” energy sources, with a small net benefit. Hmmm.

People will change their lifestyles if they are unable to afford to do otherwise. Businesses who do not respond will be expropriated for the common good, and their denialist bosses sent to be re-educated in labour camps. The plan will work, and the economic models are infallible. Any deviation from the plan will be therefore be due to economic sabotage.

The Psychologist sees a problem – but does not want to say so

On pages 12 to 13 is ‘Psychology of human acceptance and engagement

A short abstract, quoted in full

The need to voluntarily write off fossil fuel reserves is now clear. The continuing exponential nature of CO2 emissions tells us that none of the talk and action to date on climate change has produced a detectable dent in the trajectory. It also strongly suggests that since efficiency and innovation have gone hand in hand with emissions growth, they are, in themselves, more likely to be integral to the dynamics of growth than to enable mitigation. The exponentiality further suggests that a feedback mechanism needs breaking at the global system level; there is plenty of evidence that local reductions are absorbed elsewhere in the system, like a squeezed balloon.

(Especially in the absence of very widespread CCS), a global constraint on the extraction of fuel is a ‘must have’. All actions can therefore be viewed in terms of their contribution to the conditions under which the global socio- economic system might shift to one in which humans have voluntarily agreed to leave fuel in the ground. Such conditions are more than the cocktail of science, politics, technology and economics to which most climate change analysis, including the above summary, is constrained. The most critically lacking element is the psychology of human acceptance of and engagement with a problem such as climate change, characterised by its abstraction, uncertainty and inescapably global systemic nature. We need to view this as an unsolved mystery, the most ignored part of the puzzle and critical to bridging the void between rationale analysis and policy.

My interpretation is that human beings do not want to sacrifice their immediate interests to some ill-defined and distant goals spoken by some “Johnny foreigners” who do not share their values. Further, leaders of energy-producing authoritarian countries will not leave these fossil fuels in the ground when they know that to do so would lead to economic collapse, swiftly followed by a violent overthrow of their regimes and their possible deaths.

The Social Scientist’s case for a Dictatorship

On pages 23 to 25 is ‘Social science prospects for radical change’

The only acknowledged truth is from the UNIPCC and the Stern Review. No acknowledgement that contrary perspectives are possible.

Social psychologists, among others, have drawn attention to the potential for climate mitigation which could be unlocked through the application of insights into the affective, cognitive, value-based, and social and broader contextual determinants of people’s actions.

Social Scientists must change the way we think.

Despite the acknowledged need to understand and influence the role of the individual in contributing to climate change, the disparity between what might be and what has been achieved has become discomfiting.


They are not getting the message across, and they cannot understand why.


With the exception of the establishment of a small number of iconic behaviours such as recycling, it has proved extremely difficult to bring about meaningful transformations in personal emissions at either the individual or societal level. On the basis of a number of reviews, it would seem that whilst some change is achievable, there are profound limits to what can be accomplished using current, conventional approaches.


Translation – we need more power.


Current methods of persuasion have failed. We need something different.


First up is control of the press, followed by enforced re-education have been the historical approaches.


There has been an expectation that change be confined to small-scale and undemanding changes in behaviour (for example, switching off unused appliances); a concomitant neglect of highly impactful activities because of the perceived political infeasibility of doing so (for example, levels of consumption);


Translation – we need more power.


… a reluctance on the part of social scientists to take strong normative positions (specifically, to see themselves as advocates for change rather than disinterested theoreticians);


Translation – we need stronger and more dogmatic beliefs in the cause.


…. and a lack of integration – and at times outright hostility – between different disciplinary traditions (for example between behavioural science and social practice based approaches).


Translation – we need only achieve this power if we unite into a unified force.


In the first instance, we suggest that a radical social science of climate change mitigation would set out deliberately to enter territory which is complex and often seemingly intractable – but where personal emissions are significant.


Basically ban the use of cars and forget about foreign holidays in aeroplanes. Persuade people to do without the elements of consumerist society, such as designer clothes, televisions, computers, washing machines, Christmas etc.


That these behavioural changes are nothing to do with combatting a global climate change problem is shown by a very telling omission. There is no mention of any country other than the UK.


Democracy and human rights may have to be suspended


On pages 25 to 26- ‘Is wartime mobilisation a suitable policy model for rapid national climate mitigation?


The abstract concludes


We find that, while wartime experience suggests some potential strategies for rapid climate mitigation in the areas of finance and labour, it also has severe limitations, resulting from its lack of democratic processes. Furthermore, since restructuring the existing socio-economic system to mitigate climate change is more complex than fighting a war and since the threat of climate change is less obvious to non-scientists, it is unlikely that the public will be unified in support of such executive action.


Again, nothing about the global economy, just the UK.


And opportunities exploited for a radical redistribution of emissions


On pages 27 to 29 is ‘Personal carbon trading in a radical future


Personal carbon trading (PCT) is a radical and innovative mitigation policy which offers an equitable means of reducing emissions from household energy use and personal travel. PCT offers two dimensions of fairness – firstly, everyone gets an equal carbon allowance, a ‘fair share’. Secondly, modelling of the impacts of a PCT scheme shows it would be progressive and would disadvantage fewer low-income people than an alternative policy of carbon taxation.


Everyone will be allocated an equal share, and the computer models show that it will work.


What is left out is the problem of rolling this out globally to solve a global problem.


As I always say, compare and contrast my interpretations with what is actually written. When a publicly-funded body brings together a number of academics from different disciplines, all calling for massively increased power, there is something amiss. When it is held within the UK’s “academy of sciences” building, it is being given an official veneer of respectability.


NB First time comments are moderated. The comments can be used as a point of contact.

Kevin Marshall

Notes Labour’s Analysis of the Energy Market

Labour’s Green Paper on Energy has been found by Alex Cull (comment at Dec 2, 2013 at 1:03 PM) at the site “Your Britain“, in the Agenda 2015 section. Having read it, I can see why the Labour Party are not keen for the electorate to find the document. Some quick observations, that I believe are sufficient to show that Labour have not bottomed out the only, let alone the best, explanation of why retail prices have risen so fast in last few years. What this clearly shows is that Labour’s proposed policy freeze is not just misplaced; it is positively harmful to Britain having future low-cost and secure energy supplies.

Note 03/12/13: This post will be added to over the coming days.

Update 04/12/13: Note on declining investment in “clean energy”

Billions not Millions

The Executive Summary states

Lack of competition in the retail market has resulted in consumers paying £3.6m more than they need to each year.

Caption to Table 1 on page 7 states

Lack of competition in the retail market has resulted in consumers paying £3.6 billion more than they need to

Error in Calculation

The source of the £3.6bn is from Which?

The consumer group Which? found that 75 per cent of customers are on the most expensive tariffs offered by suppliers – their standard tariff – and are not getting the cheapest deal in the market. They estimate that since 2011, families across the country have paid £3.6 billion a year more than they need to as a result. That means that households are on average paying £136 each year because the retail market is not working in the way that a competitive market should. If this market was genuinely competitive, energy companies would face stronger incentives to drive their costs down and pass savings to consumers through lower prices and cheaper tariffs; but this is not happening.

That implies that

  1. In a perfectly competitive market, the single price would be the very cheapest rate available.
  2. As a consequence the big six energy companies are pocketing the difference.

So, there is a monopoly profit of greater than £3.6bn. Ofgem monitors the big six energy firms. The BBC reported on 25th November that

Overall, profits in generation and supply across the half-dozen firms fell from £3.9bn in 2011 to £3.7bn in 2012.

So the competitive market profit fell from £0.3bn to £0.1bn? I don’t think so. The price differential is due to competition working, not due to its’ failure. Like in many areas, if you shop around you can get a better deal than those who do not, as sellers will discount to win your business. If you do not shop around, you will get a bad deal. Look at insurance, hotel rooms, flights or even consumer goods. Reducing competition will cause profits will rise, and the savvy consumer will lose out. Regulate enough and even those who never haggle will not get a good deal.

Decline in those switching suppliers

…. a confusing system of 900 tariffs makes it hard for consumers to actively engage in this market. Since 2008, the number of people switching energy supplier has fallen by over 50 per cent, and switching levels are now at the lowest level on record. Low levels of switching means that the big energy companies have a ‘captured market’ which reduces the incentives to keep prices competitive.

Fig 1 shows a decline in number of people transferring between suppliers between year to year. This shows a decline from around … to …. Is this evidence of a decline?

All other things being equal, then it is evidence of declining competitiveness. But all other things are not equal. A supplier can take action to retain the business. There is passive action and non-passive action.

Passive action is when the customer tries to move away, or threatens to. They are can offered a better deal to retain the business.

Proactive action is to offer the customer a better deal. For instance, I moved supplier in 2012 on a 12 month contract. In July, just before the end of the deal, the supplier offered me their best deal. This I accepted, after a quick check.

A decline in transfers could therefore be due to suppliers taking action to retain custom. This saves on their costs, and consumer’s inconvenience, whilst keeping the market competitive. As the cost to energy companies is less, this can keep overall costs down.

A test of this is to look at the differential between the standard tariff and the competitive tariffs over time for each supplier. If that has widened over time in line with the decrease in those switching then the Labour Party are correct. If it has widened, I would be surprised given the increasing number and sophistication of the price comparison websites. It would be a failure both of government policy over many years and the market to respond to those incentives.

Differential between wholesale and retail prices

Figure 2 on page 11 is meant illustrate for the electricity and gas markets how the wholesale prices have stayed roughly the same, but the retail prices have widened. The graphic for the electricity market is shown below.

The explanation is as follows.

Wholesale energy prices have been relatively stable since the winter of 2011, rising by an average of 1 per cent a year. However, the large energy companies have increased energy prices by an average of 10.4 per cent a year over this period (Figure 3). This has led to a growing gap between wholesale and retail prices that cannot be explained by the growth in network costs or policy costs which account for 20 per cent and nine per cent of the bill respectively.

So the explanation is derived from the following logic

  1. Prices have risen by over 30% in the last 3 years.
  2. Wholesale prices form the biggest part of the cost to the consumer and have not moved very much.
  3. Other costs have grown, but now only account for 29% of the bill.
  4. By implication, the profits of the energy companies have increased at the expense of the consumer.

Let us first assume that the scales are comparable. The left hand scale is the wholesale cost in £/MWh. The right hand scale in the average annual retail cost per household. In 2010 the average household was paying about £430 for their electricity, compared with £550 in Jan-2013. The wholesale price component rose from around £280 to £310. So “other costs” rose by around £90. This is a huge increase in costs. With around 26 million households, this is around £2.4bn – well on the way to accounting for the £3.6bn claimed above. There is gas as well remember, so there could be an argument.

But what are the other costs?

These include

  1. Standing charges. The costs of operating the National Grid, and replacing meters in homes, along with subsidies for the poor.
  2. Renewables Obligations (RO) and Feed-in-tariffs (FIT). That is the subsidies that the owners of wind turbines and solar panels get over and above the wholesale price of electricity. For instance, operators of offshore wind turbines will get a similar amount in RO as from the market price.
  3. The small, but growing STOR scheme.
  4. The fixed costs of the retail operation. That is the staff to produce the bills, operate the call centres, along with the cost of a sales force to get you to switch.
  5. The net is the retail margin.

Let us assume that “network costs or policy costs” and policy costs doubled in three years as a proportion of the total electricity bill. That is from 14.5% to 29%. That would be £97 of the £90 increase in margin. This hypothetical example needs to be tested with actual data. However, the lack of the rise in profits is corroborated by OFGEM figures for the Big 6 Energy Companies, as I summarized out last week.

The margins on “supply” have not increased, and are still at the level of a discount supermarket. The margins on “generation” derive from selling at wholesale and the proceeds of the subsidies. Unless Labour are implying that the “Big 6” are guilty of false reporting to OFGEM, the vast majority of the increase in differential between wholesale cost and selling price is accounted for by factors other than profits to the energy companies. Labour are implying the vast majority of the increase in differential between wholesale cost and selling price is accounted for by the profits to the energy companies, and therefore misleading the electorate.

Interpretation of clean energy investment figures

Figure 4 is the following chart

The fall in investment, at a time when it should be accelerating, is a result of the policy environment and protracted decision-making by Government. The Government has been widely blamed for failing to provide the policy certainty needed to de-risk investment.

There is an alternative way to interpret this data. Labour lost the general election in May 2010. What might be more significant is the passage of the Climate Change Act 2008. In the next year investment was nearly 3 times higher, then falling each year since. The Climate Change Act 2008 greatly enhanced the incentives for “clean energy” investment, hence the leap. There are only a finite number of opportunities, so the investment is reducing year-on-year. This being despite the biggest source of revenue coming from index-linked subsidies loaded onto electricity bills. Another reason is that many in the industry saw problems with the technology, that are only now coming to light. In particular the lifespan of the turbines might be shorter than previously thought. Further, the opposition to the wind turbines (where most of the investment is concentrated) is increasing, such as against the proposed Atlantic Array that would have blighted the Bristol Channel. Campaigners are also increasingly concerned about noise pollution.

Therefore, I propose that declining investment is not due to Government spin doctors failing to sweet-talk big business, but due to the reality of “clean energy” turning out to fall far short of the sales patter.

NB First time comments are moderated. The comments can be used as a point of contact.

Kevin Marshall

Ed Milibands claims to have published an “energy green paper” untrue

Update 20.00

I owe the Ed Miliband and the Labour Party an apology with reservations. They did publish an “energy green paper” on Friday. The reservations are

  1. It was published at (Alexa, has no country data for the site)
  2. My mistake was to use the key words “Labour Energy Green Paper” in my bing search. There is (7pm) no reference to this in the first 50 hits, but there are references to the Labour Party website. Even the Chelmsford Weekly News article (No Alexa country data for this site) makes 20.
  3. The Labour Party Website (UK Alexa rank 9,080) still does not reference the document.
  4. The website referred to on the video ( is inaccurate. It should read Even here you will not find a link to the energy green paper.

My mistake, in accusing Ed Miliband of not publishing the paper when he had, was due to a misconception. I assumed that Labour Party spin doctors would be super-efficient, and so the failure to publish would be due to simple, but embarrassing, clerical errors. Having now read the paper, it would seem to go a bit deeper than that.


Labour’s claim to have published a green paper on energy is untrue. There is no link on the internet to any document, whether freely available, or to purchase.

BishopHill reported on Friday 29th November that Labour Party leader Ed Miliband had launched a “Green paper on energy”, proposing a freeze in energy price is Labour wins power in 2015. At the BBC there is a video of Ed Miliband saying

…and what Britain needs is Labour’s strong and credible plan, that we are publishing today, to freeze energy prices until 2017 and reform a broken energy market so it properly works for business and families.

As I always like to read the original source material, I went to look for it.

Tried at, which announces:-

The Energy Green Paper sets out the steps a One Nation Labour government will take while we reset the market during the 20 month price freeze to ensure energy is affordable and available…

But no link on the site to a pdf, neither a link to a shop where I might procure a paper copy of the green paper.

It gets worse. In the home page, the lower part for the last couple of days has this:-

It says

Read Ed Miliband’s energy plan

The link is to

No details of the plan. No details of the links to a plan. But there is a link to a video of 1.26 minutes long.

At 1.22 there is a link to “”.

This takes me straight back to The details do not exist.

Further, there is no link at the BBC, The Mirror, The Guardian, at Sky News, nor a number of other websites that have run the story.

The Labour Spin Doctors have been so concerned to get out the media message, they forgot the substance.

Kevin Marshall
