Climate Interactive’s Bogus INDC Forecast

Summary

Joe Romm wrote a post in early November claiming UNFCCC Executive Secretary Christiana Figueres had misled the public in claiming that the “INDCs have the capability of limiting the forecast temperature rise to around 2.7 degrees Celsius by 2100”. Using Climate Interactive’s figures Romm claims the correct figure is 3.5°C. That Romm had one of two sources of the 2.7°C staring at him is a side issue. The major question is how Climate Interactive can achieve a full 1.0°C reduction in expected temperature rise in 2100 and a reduction of 40% in 2100 GHG emissions from pledges covering the period 2015, when the UNFCCC estimates will have a much smaller impact in 2030? Looking at the CO2 emissions, which account for 75-80% of GHG emissions, I have found the majority answer. For OECD countries where emissions per capita have been stable or falling for decades, the “No Action” scenario forecasts that they will rise for decades. For Russia and China, where per capita emissions are likely to peak before 2030 without any policy action, the “No Action” scenario forecasts that they will rise for decades. This is largely offset by Climate Interactive assuming that both emissions and economic growth in India and Africa (where there are no real attempts to control emissions) will stagnate in the coming decades. Just by making more reasonable CO2 emissions forecasts for the OECD, Russia and China can account for half of the claimed 2100 reduction in GHG emissions from the INDC. Climate Interactive’s “No Action” scenario is bogus.



Joe Romm’s use of the Climate Interactive projection

A couple of months ago, prior to the COP21 Paris climate talks, Joe Romm at Climate Progress criticized the claim made in a press release by UNFCCC Executive Secretary Christiana Figueres:

The INDCs have the capability of limiting the forecast temperature rise to around 2.7 degrees Celsius by 2100, by no means enough but a lot lower than the estimated four, five, or more degrees of warming projected by many prior to the INDCs

Romm’s note to the media is

If countries go no further than their current global climate pledges, the earth will warm a total of 3.5°C by 2100.

At a basic level Romm should have done some proper research. As I found out, there are two sources of the claim that are tucked away at the end of a technical appendix to the UNFCCC Synthesis report on the aggregate effect of INDCs. One of these is Climate Action Tracker. On their home page they have a little thermometer which shows the 2.7°C figure. Romm would have seen this, as he refers in the text to CAT’s page on China. The significance may not have registered.

However, the purpose of this post is not to criticize Romm, but the Climate Interactive analysis that Romm uses as the basis of his analysis. Is the Climate Interactive Graph (reproduced in Figure 1) a reasonable estimate of the impact of the INDC submissions (policy pledges) on global emissions?1

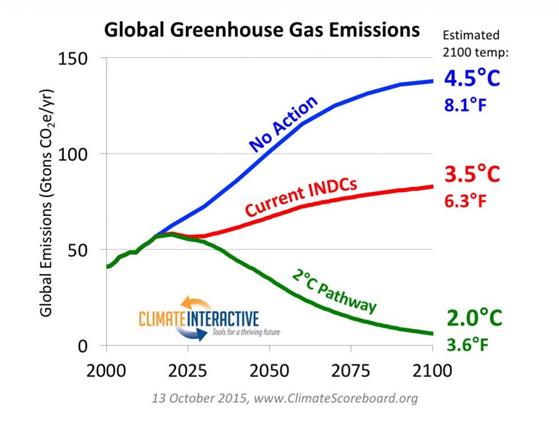

Figure 1. Climate Interactive’s graph of impact of the INDC submissions to 2100

What struck me as odd when I first saw this graph was how the INDCs could make such a large impact beyond the 2015-2030 timeframe that they covered when the overall impact was fairly marginal within that timeframe. This initial impression is confirmed by the UNFCCC’s estimate of the INDCs

Figure 2. UNFCCC’s estimate of emissions impact of the INDCs, with the impact shown by the yellow bars. Original here.

There are two things that do not stack up. First is that the “No Action” scenario appears to be a fairly reasonable extrapolation of future emissions without policy. Second, and contrary to that is the first, is that the “Current INDCs” scenario does not make sense in terms of what I have read in the INDCs and is confirmed by the INDCs. To resolve this requires looking at the makeup of the “No Action” scenario. Climate Interactive usefully provide the model for others to do their own estimates,2 With the “User Reference Scenario” giving the “no action” data3, split by type of greenhouse gas and into twenty regions or countries. As about 75-80% of emissions with the model are CO2 Fossil Fuel emissions, I will just look at this area. For simplicity I have also reduced the twenty regions or countries into just seven. That is USA, Other OECD, Russia, China, India, Africa and Rest of the World. There are also lots of ways to look at the data, but some give better understanding of the data than others. Climate Interactive also have population estimates. Population changes over a long period can themselves result in changed emissions, so looking at emissions per capita gives a better sense of the reasonableness of the forecast. I have graphed the areas in figure 3 for the historical period 1970-2010 and the forecast period 2020-2100.

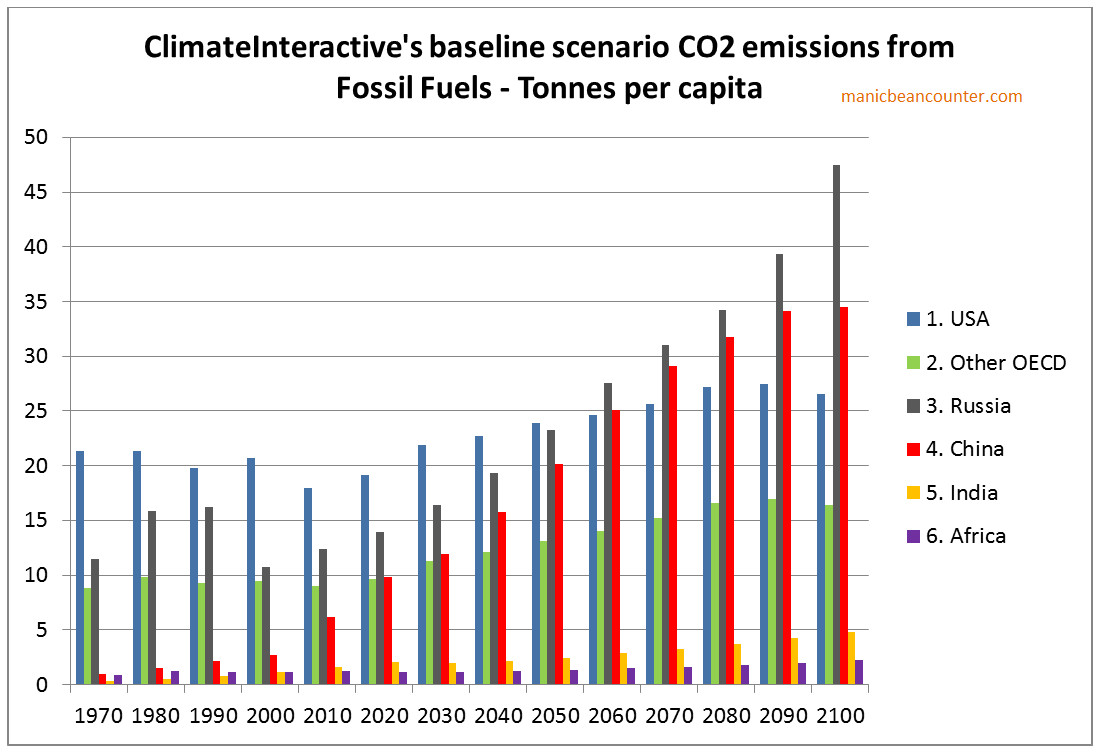

Figure 3 : Fossil Fuel Emissions per capita for six regions from the Climate Interactive “No Action” Scenario.

Understanding the CO2 emissions forecasts

In the USA, emissions per capita peaked at the time of 1973 oil embargo. Since then they have declined slightly. There are a number of reasons for this.

First, higher oil prices gave the economic incentives to be more efficient in usage of oil. In cars there have been massive improvements in fuel efficiency since that time. Industry has also used energy more efficiently. Second, there has been a growth in the use of nuclear power for strategic reasons more than economic. Third is that some of the most energy intensive industries have shifted to other countries, particularly steel and chemicals. Fourth, is that growth in developed countries is mostly in the service sector, whereas growth in developing countries is mostly in manufacturing. Manufacturing tends to have much higher energy usage per unit of output than services. Fifth, is that domestic energy usage is from cars and power for the home. In an emerging economy energy usage will rise rapidly as a larger proportion of the population acquire cars and full heating and lighting systems in the home. Growth is much slower once most households have these luxuries. Sixth is that in the near future emissions might continue to fall with the development of shale gas, with its lower emissions per unit of power than from coal.

I therefore cannot understand why anyone would forecast increasing emissions per capita in the near future, when they have been stable or falling in for decades. Will everyone start to switch to less efficient cars? When these forecasts were made oil was at $100 a barrel levels, and many thought peak oil was upon us. Would private sector companies abandon more efficient energy usage for less efficient and higher cost usage? The USA may abandon nuclear power and shift back to coal for political reasons. But in all forms of energy, production and distribution is likely to continue to become more efficient in all forms.

In the rest of the OECD, there are similar patterns. In Europe energy usage was never as high. In some countries without policy CO2 emissions may rise slightly. In Germany they are replacing nuclear power stations with coal for instance. But market incentives will increase energy efficiency and manufacturing will continue to shift to emerging nations. Again, there appears no reason for a steady increase in emissions per capita to increase in the future.

Russia has a slightly different recent past. Communist central planning was highly inefficient and lead to hugely inefficient energy usage. With the collapse of communism, energy usage fell dramatically. Since then emissions have been increasing, but more slowly than the economy as a whole. Emissions will peak again in a couple of decades. This will likely be at a lower level than in the USA in 1970, despite the harsher climate, as Russia will benefit from technological advances in the intervening period. There is no reason for emissions to go on increasing at such a rapid rate.4

China has recently had phenomenal growth rates. According to UN data, from 1990 to 2012, economic growth averaged 10.3% per annum and CO2 emissions 6.1%. In the not too distant future economic growth will slow as per capita income approaches rich country levels, and emissions growth will slow or peak. But the Climate Interactive forecast has total emissions only peaking in 2090. The reason for China’s and Russia’s forecast per capita emissions exceeding those of the USA is likely due to a failure to allow for population changes. In USA population is forecast to grow, whilst in China and Russia population is forecast to fall.

India has the opposite picture. In recently years economic and CO2 emissions growth has taken off. Current policies of Prime Minister Narendra Modi are to accelerate these growth rates. But in the Climate Interactive forecast growth, economic growth and CO2 emissions growth plummet in the near future. Economic growth is already wrong. I am writing on 30/12/15. To meet the growth forecast for 2010-2015, India’s GDP will need to drop by 20% in the next 24 hours.5

For the continent of Africa, there have been encouraging growth signs in the last few years, after decades when many countries saw stagnation or even shrinking economies. Climate Interative forecasts similar growth to India, but with a forecasts of rapid population growth, the emissions per capita will hardly move.

Revised CO2 emissions forecasts

It is extremely difficult and time consuming to make more accurate CO2 emissions forecasts. As a shortcut, I will look at the impact of revisions on 2100, then at the impact on the effect of the INDCs. This is laid out in Figure 4

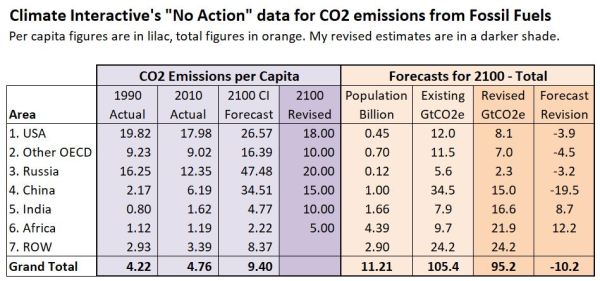

Figure 4 : Revised Forecast CO2 Emissions from Fossil Fuels

The first three columns in pale lilac are for CO2 emissions per capita calculated, from the Climate Interactive data. In the 2100 Revised column are more realistic estimates for reasons discussed in the text. In the orange part of the table are the total forecast 2100 Climate Interactive figures for population and CO2 emissions from fossil fuels. In darker orange is the revised emissions forecast (emissions per capita multiplied by forecast population) and the impact of the revision. Overall the forecast is 10.2GtCO2e lower, as no calculation has been made for the rest of the world. To balance back requires emissions of 11.89 tonnes per capita for 2.9 billion people. As ROW includes such countries as Indonesia, Bangladesh, Iran, Vietnam, Brazil and Argentina this figure might be unreasonable 85 years from now.

The revised impact on the INDC submissions

The INDC submissions can be broken down.

The USA, EU, Japan and Australia all have varying levels of cuts to total emissions. So for the OECD as a whole I estimate Climate Interactive over estimates the impact of the INDCs by 8.4GtCO2e

The Russian INDC pledge it is unclear, but it seems to be saying that emissions will peak before 2030 at below 1990 levels6. As my revised forecast is above this level, I estimate Climate Interactive over estimates the impact of the INDCs by 3.2GtCO2e

The Chinese INDC claims pledges that its emissions will have peaked by 2030. This will have happened anyway and at around 10-12 tonnes per capita. I have therefore assumed that emissions will stay constant from 2030 to 2100 whilst the population is falling. Therefore I estimate that Climate Interactive over estimates the impact of the INDCs by 19.5GtCO2e

Overall for these areas the overestimation is around 31 GtCO2e. Instead of 63.5GtCO2e forecast for these countries for 2100 it should be nearer 32.5GtCO2e. This is about half the total 2100 reduction that Climate Interactive claims that the INDC submission will make from all types of greenhouse gases. A more rigorous forecast may have lower per capita emissions in the OECD and China. There may be other countries where similar forecast issues of CO2 emissions might apply. In addition, in note 7 I briefly look at the “No Action” CH4 emissions, the second largest greenhouse gas. There appear to be similar forecast issued there.

In summary, the make-up of the CO2 emissions “No Action” forecast is bogus. It deviates from an objective and professional forecast in a way that grossly exaggerates the impact of any actions to control GHG emissions, or even pledges that constitute nothing more than saying what would happen anyway.

Notes

  1. The conversion of a given quantity of emissions into average surface temperature changes is outside the scope of this article. Also we will assume that all policy pledges will be fully implemented.
  2. On the Home page use the menu for Tools/C-ROADS. Then on the right hand side select “Download C-ROADS”. Install the software. Run the software. Click on “Create New Run” in the centre of the screen.


    This will generate a spreadsheet “User Scenario v3 026.xls”. The figures I use are in the User Reference Scenario tab. The software version I am working from is v4.026v.071.

  3. The “User Reference Scenario” is claimed to be RCP 8.5. I may post at another time on my reconciliation between the original and the Climate Interactive versions.

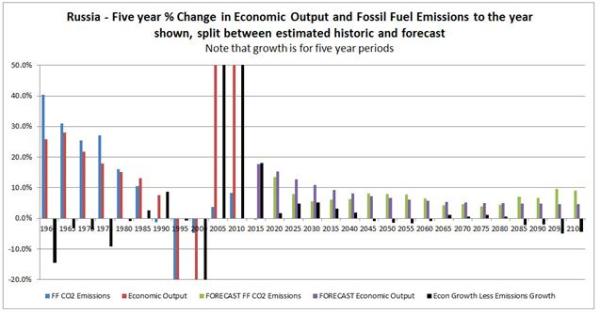

  4. The forecast estimates for economic growth and emissions for Russia look quite bizarre when the 5 year percentage changes are graphed.


    I cannot see any reason for growth rates to fall to 1% p.a in the long term. But this is the situation with most others areas as well. Nor can I think of a reason for emissions growth rates to increase from 2030 to 2055, or after 2075 expect as a contrivance for consistency purposes.

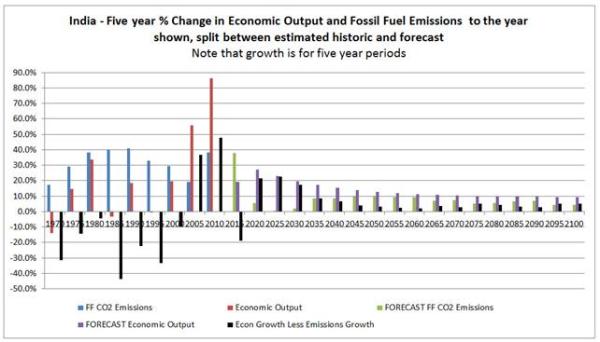

  5. The forecast estimates for economic growth and emissions for India look even more bizarre than for Russia when the 5 year percentage changes are graphed.


    I am writing on 30/12/15. To meet the growth forecast for 2010-2015, India’s GDP will need to drop by 20% in the next 24 hours. From 2015 to 2030, the period of the INDC submissions, CO2 emissions are forecast to grow by 8.4%. India’s INDC submission implies GHG emissions growth from 2014 to 2030 of 90% to 100%. Beyond that India is forecast to stagnate to EU growth rates, despite being a lower to middle income country. Also, quite contrary to Russia, emissions growth rates are always lower than economic growth rates.

  6. The Russian Federation INDC states

    Limiting anthropogenic greenhouse gases in Russia to 70-75% of 1990 levels by the year 2030 might be a long-term indicator, subject to the maximum possible account of absorbing capacity of forests.

    This appears as ambiguous, but could be taken as meaning a long term maximum.

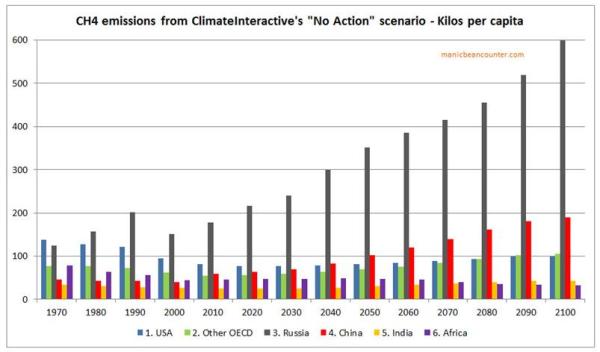

  7. CH4 (Methane) emissions per Capita

    I have quickly done a similar analysis of methane emissions per capita as in Figure 2 for CO2 emissions. The scale this time is in kilos, not tonnes.

    There are similarities

  • OECD emissions had been falling but are forecast to rise. The rise is not as great as for CO2.
  • In Russia and China emissions are forecast to rise. In Russia this is by a greater amount than for CO2, in China by a lesser amount.
  • In Africa, per capita emissions are forecast to fall slightly. Between 2010, CH4 emissions are forecast to rise 3.1 times and population by 4.3 times.
  • In both the USA and Other OECD (a composite of CI’s categories) total CH4 emissions are forecast in 2100 to be 2.778 times higher than in 2010. In both China and India total CH4 emissions are forecast in 2100 to be 2.420 times higher than in 2010.




by manicbeancounter on 30/12/2015  •  Permalink
Posted in Climate Change Economics, COP21 Paris, Public Relations and Climate Change, Spin (Propaganda), UNFCCC
Tagged , , , , ,

Posted by manicbeancounter on 30/12/2015

https://manicbeancounter.com/2015/12/30/climate-interactives-bogus-indc-forecast/

Shotton Open Cast Coal Mine Protest as an example of Environmental Totalitarianism

Yesterday, in the Greens and the Fascists, Bishop Hill commented on Jonah Goldberg’s book Liberal Fascists. In summing up, BH stated:-

Goldberg is keen to point out that the liberal and progressive left of today do not share the violent tendencies of their fascist forebears: theirs is a gentler totalitarianism (again in the original sense of the word). The same case can be made for the greens. At least for now; it is hard to avoid observing that their rhetoric is becoming steadily more violent and the calls for unmistakably fascist policy measures are ever more common.

The link is to an article in the Ecologist (reprinted from Open Democracy blog) – “Coal protesters must be Matt Ridley’s guilty consience”

The coal profits that fill Matt Ridley’s bank account come wet with the blood of those killed and displaced by the climate disaster his mines contribute to, writes T. If hgis consicence is no longer functioning, then others must step into that role to confront him with the evil that he is doing. (Spelling as in the original)

The protest consisted of blocking the road for eight hours to Shotton open cast coal mine. The reasoning was

This was an effective piece of direct action against a mine that is a major contributor to climate disaster, and a powerful statement against the climate-denying Times columnist, Viscount Matt Ridley, that owns the site. In his honour, we carried out the action as ‘Matt Ridley’s Conscience’.

The mine produces about one million tonnes of coal a year out of 8,000 million tonnes globally. The blocking may have reduced annual output by 0.3%. This will be made up from the mine, or from other sources. Coal is not the only source of greenhouse gas emissions, so the coal resulting in less than 0.004% of global greenhouse gas emissions. Further, the alleged impact of GHG emissions on the climate is cumulative. The recoverable coal at Shotton is estimated at 6 million tonnes or 0.0007% of the estimated global reserves of 861 billion tonnes (Page 5). These global reserves could increase as new deposits are found, as has happened in the recent past for coal, gas and oil. So far from being “a major contributor to climate disaster”, Shotton Open Cast Coal Mine is a drop in the ocean.

But is there a climate disaster of which Matt Ridley is in denial? Anonymous author and convicted criminal T does not offer any evidence of current climate disasters. He is not talking about modelled projections, but currently available evidence. So where are all the dead bodies, or the displaced persons? Where are the increased deaths through drought-caused famines? Where are the increased deaths from malaria or other diseases from warmer and worsening conditions? Where is the evidence of increased deaths from extreme weather, such as hurricanes? Where are the refugees from drought-stricken areas, or from low-lying areas now submerged beneath the waves?

The inability to evaluate the evidence is shown by the comment.

Ridley was ( … again) offered a platform on BBC Radio 4 just a week before our hearing, despite his views being roundly debunked by climate scientists.

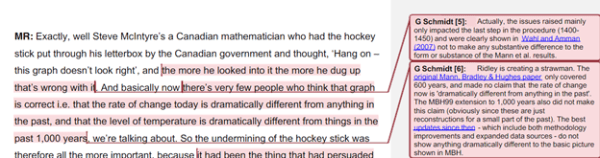

The link leads to a script of the Radio 4 interview with annotated comments. I am not sure that all the collective brains do debunk (that is expose the falseness or hollowness of (an idea or belief)) Matt Ridley’s comments. Mostly it is based on nit-picking or pointing out the contradictions with their own views and values. There are two extreme examples among 75 comments I would like to highlight two.

First is that Matt Ridley mentioned the Hockey Stick graphs and the work of Steve McIntyre in exposing the underlying poor data. The lack of a medieval warm period would provide circumstantial (or indirect) evidence that the warming of the last 200 years is unprecedented. Gavin Schmidt, responded with comments (5) and (6) shown below.

Schmidt is fully aware that Steve McIntyre also examined the Wahl and Amman paper and thoroughly discredited it. In 2008 Andrew Montford wrote a long paper of the shenanigans that went into the publication of the paper, and its lack of statistical significance. Following from this Montford wrote the Hockey Stick Illusion in 2010, which was reviewed by Tamino of RealClimate. Steve McIntyre was able to refute the core arguments in Tamino’s polemic by reposting Tamino and the Magic Flute, which was written in 2008 and covered all the substantial arguments that Tamino made. Montford’s book further shows a number of instances where peer review in academic climatology journals is not a quality control mechanism, but more a device of discrimination between those that support the current research paradigm and those that would undermine that consensus.

Comment 6 concludes

The best updates since then – which include both methodology improvements and expanded data sources – do not show anything dramatically different to the basic picture shown in MBH.

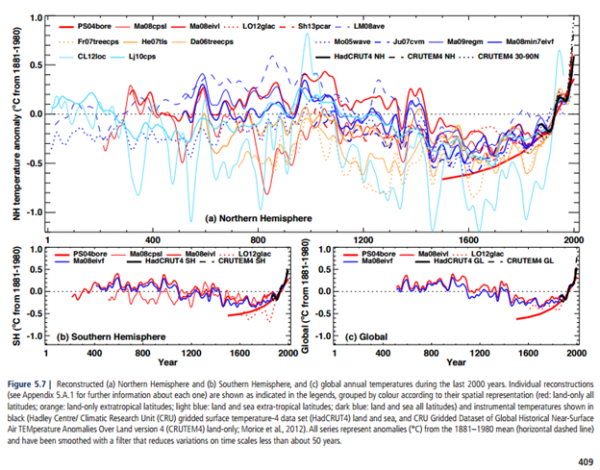

The link is to Chapter 5 on the IPCC AR5 WG1 assessment report. The paleoclimate discussion is a small subsection, a distinct reversal from the prominent place given to the original hockey stick in the third assessment report of 2001. I would contend the picture is dramatically different. Compare the original hockey stick of the past 1,000 years with Figure 5.7 on page 409 of AR5 WG1 Chapter 5.

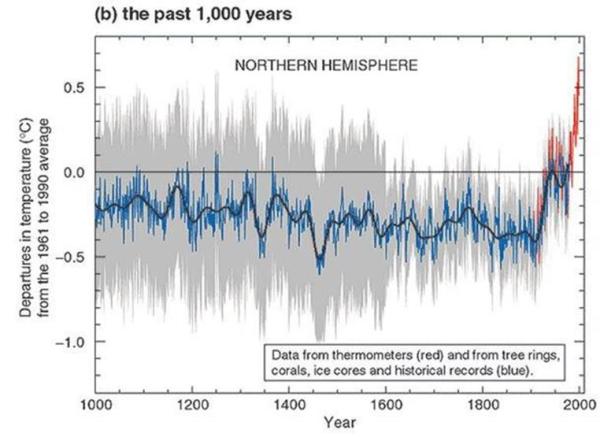

In 2001, the MBH reconstruction was clear. From 1900 to 2000 average temperatures in the Northern Hemisphere have risen by over 1C, far more than the change in any of century. But from at least two of the reconstructions – Ma08eivl and Lj10cps – there have been similarly sized fluctuations in other periods. The evidence now seems to back up Matt Ridley’s position of some human influence on temperatures, but does not support the contention of unprecedented temperature change. Gavin Schmidt’s opinions are not those of an expert witness, but of a blinkered activist.

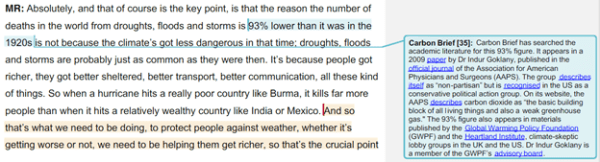

Schmidt’s comments on hockey stick graphs are nothing compared to comment 35

The Carbon Brief (not the climate scientists) rejects evidence that contradicts their views based on nothing more than ideological prejudice. A search for Indur Goklany will find his own website, where he has copies of his papers. Under the “Climate Change” tab is not only the 2009 paper, but a 2011 update – Wealth and Safety: The Amazing Decline in Deaths from Extreme Weather in an Era of Global Warming, 1900–2010. Of interest are two tables.

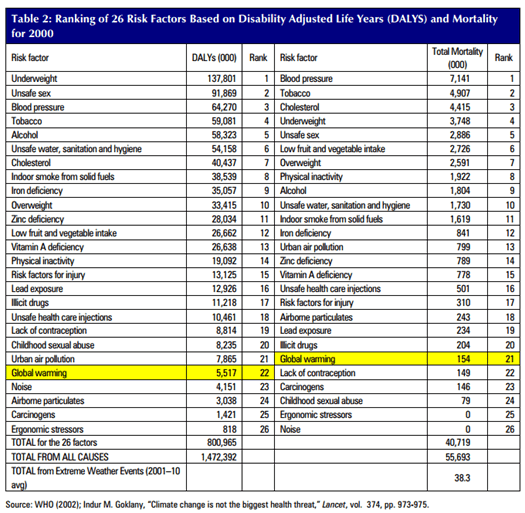

Table 2 is a reproduction of World Health Organisation data from 2002. It clearly shows that global warming is well down the list of causes of deaths. Goklany states in the article why these figures are based on dubious assumptions. Anonymous T falsely believes that global warming is curr

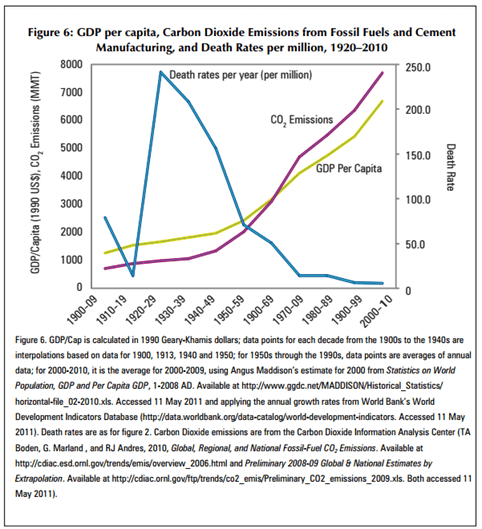

Figure 6 for the period 1990-2010 shows

  • the Global Death and Death Rates per million Due to Extreme Weather Events
  • CO2 Emissions
  • Global average GDP Per Capita

Figure 6 provides strong empirical evidence that increasing CO2 emissions (about 70-80% of total GHG emissions) have not caused increased deaths. They are a consequence of increasing GDP per capita, which as Goklany argues, have resulted in fewer deaths from extreme weather. More importantly, increasing GDP has resulted in increased life expectancy and reductions in malnutrition and deaths that be averted by access to rudimentary health care. Anonymous T would not know this even if he had read all the comments, yet it completely undermines the beliefs that caused him to single out Matt Ridley.

The worst part of Anonymous T’s article

Anonymous T concludes the article as follows (Bold mine)

The legal process efficiently served its function of bureaucratising our struggle, making us attempt to justify our actions in terms of the state’s narrow, violent logic. The ethics of our action are so clear, and declaring myself guilty felt like folding to that.

We found ourselves depressed and demoralised, swamped in legal paperwork. Pleading guilty frees us from the stress of a court case, allowing us to focus on more effective arenas of struggle.

I faced this case from a position of relative privilege – with the sort of appearance, education and lawyers that the courts favour. Even then I found it crushing. Today my thoughts are with those who experience the racism, classism and ableism of the state and its laws in a way that I did not.

That reflection makes me even more convinced of the rightness of our actions. Climate violence strikes along imperialist lines, with those least responsible, those already most disadvantaged by colonial capitalism, feeling the worst impacts.

Those are the people that lead our struggle, but are often also the most vulnerable to repression in the struggle. When fighting alongside those who find themselves at many more intersections of the law’s oppression than I do, I have a responsibility to volunteer first when we need to face up to the police and the state.

Faced with structural injustice and laws that defend it, Matt Ridley’s Conscience had no choice but to disobey. Matt Ridley has no conscience and neither does the state nor its system of laws. Join in. Be the Conscience you want to see in the world.

The writer rejects the rule of law, and is determined to carry out more acts of defiance against it. He intends to commit more acts of violence, with “climate” as a cover for revolutionary Marxism. Further the writer is trying to incite others to follow his lead. He claims to know Matt Ridley’s Conscience better than Ridley himself, but in the next sentence claims that “Matt Ridley has no conscience“. Further this statement would seem to contradict a justification for the criminal acts allegedly made in Bedlington Magistrates Court on December 16th
that the protesters were frustrated by the lack of UK Government action to combat climate change.

It is not clear who is the author of this article, but he/she is one of the following:-

Roger Geffen, 49, of Southwark Bridge Road, London.

Ellen Gibson, 21, of Elm Grove, London;

Philip MacDonald, 28, of Blackstock Road, Finsbury Park, London;

Beth Louise Parkin, 29, of Dodgson House, Bidborough Street, London;

Pekka Piirainen, 23, of Elm Grove, London;

Thomas Youngman, 22, of Hermitage Road, London.

Laurence Watson, 27, of Blackstock Road, Finsbury Park, London;

Guy Shrubsole, 30, of Bavent Road, London;

Lewis McNeill, 34, of no fixed address.

Kevin Marshall

by manicbeancounter on 29/12/2015  •  Permalink
Posted in Degenerating Climatology, Eco-Fanatics, Hockey Sticks, Rule of Law, Spin (Propaganda)
Tagged , , , , ,

Posted by manicbeancounter on 29/12/2015

https://manicbeancounter.com/2015/12/29/shotton-open-cast-coal-mine-protest-as-an-example-of-environmental-totalitarianism/

No Global Plan from COP21 Paris to Reduce Greenhouse Gas Emissions

Headline news around the world is that a landmark global agreement has been reached.

The BBC headlines

A deal to attempt to limit the rise in global temperatures to less than 2C has been agreed at the climate change summit in Paris after two weeks of negotiations.

The Australian ABC News summarizes

Historic climate deal

  • Deal to limit global warming to “well below” 2C, aiming for 1.5C
  • Greenhouse gas emissions need to peak “as soon as possible”, followed by rapid reduction
  • Deal will eliminate use of coal, oil and gas for energy

Folha de Sao Paulo

A COP21 aprovou neste sábedo (12) em Paris o acordo que obriga pela primeira vez todos os paises signatarios da Convençāo de Clima (1992) a adotar medidas de combate ao aquecimento global.

O chamado Acordo de Paris estabelece que a temperatura global, a partir de agora, só poderá subir ate um teto de “bem menos” de 2oC, na direçāo de 1,5oC.

There is something missing – a plan to cut global greenhouse gas emissions. This is clear from reading paragraphs 17 and 21 of the Agreement.

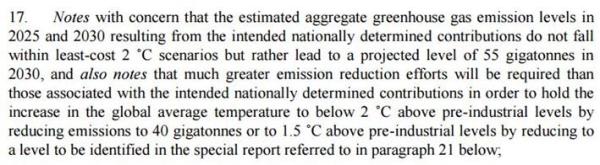

As I started a couple of weeks ago, the INDCs are not on target for the limiting to 2oC of warming. That would require emissions to be decreasing by 2030. The follow graph from the UNFCCC Synthesis Report on the aggregate effect of the INDCs states this quite clearly.

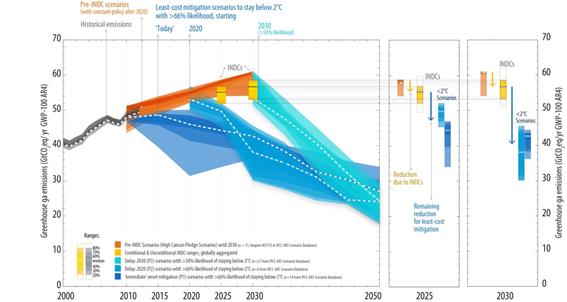

The 55 gigatonnes forecast in yellow and the required 40 gigatonnes in 2030 are visible. The graphical summary is now recognized within the agreement. Rather than say that genuine emissions reduction plans should be forthcoming, the UNFCCC asks the UNIPCC for some more scary stories and some more modelled emissions forecasts. There is a lot of hot air, but no global plans at all to reach any 2oC target. Nor will there be any global plans in place next year when the leaders of all countries will be asked to sign this agreement.

The Los Angeles Times explains (italics mine)

What is the main goal of the deal?

The stated goal among global climate negotiators has long been to reduce emissions enough so that global temperatures rise no more than 2 degrees Celsius, or 3.6 degrees Fahrenheit, by 2100. That is the level at which scientists say the most catastrophic effects of climate change can be avoided.

That goal was not met in Paris, but few people expected it to be. The commitments that countries made will limit warming to only about 3 degrees. But the agreement includes provisions for revisiting emissions goals every five years with the intention of regularly revising them upward “to reach global peaking of greenhouse gas emissions as soon as possible.”

Now there are going to be five yearly super-summits to try to achieve the point where global emissions will start reducing.
